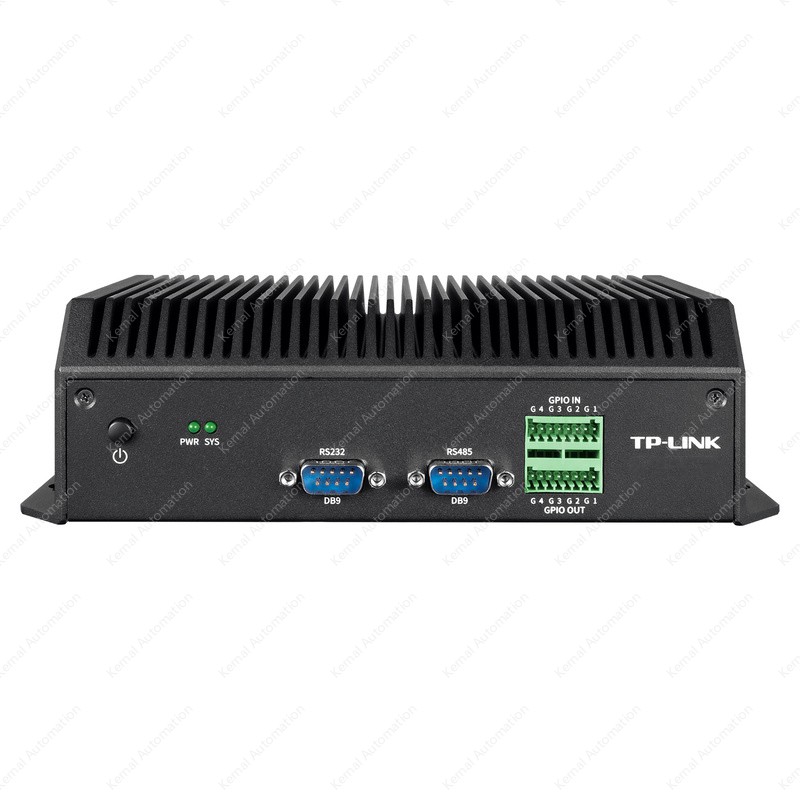

The TL-EPC-TGL series is an X86 platform fanless embedded computer launched by TP-LINK. Based on Intel's low-power and high-performance platform, Intel 6305E/i3-1115G4/i5-1135G7 processors are optional, and various operating systems such as Windows 10 and Ubuntu are supported. All-metal body, one-piece fin middle frame, closed fanless design, excellent heat dissipation and vibration resistance; The whole machine is small and compact, with rich IO interfaces, and supports wireless communication function expansion and SSD expansion. It can operate stably in an industrial environment of -10°C~50°C. Ideal for applications such as machine vision, general automation, smart terminals, edge computing, and more.
- Intel Celeron 6305E processor, ultra-low power consumption and fast response
- Pre-installed 8GB DDR4+64GB SSD, up to 32GB DDR4 supported
- Support Ubuntu, Windows 10 and other operating systems
- 4*USB/4*LAN/8*GPIO/1*RS232/1*RS485/2*HDMI
- Isolated serial port to cope with complex electromagnetic environment
- Support Expansion WiFi/4G/Bluetooth wireless communication and SSD (MiniPCIe, M.2 slot)
- Small and compact, with a length and width smaller than A5 paper size, it is designed for compact applications
- Rugged and reliable, it has passed the 3Grmms test with random vibration in operation
- One-piece fin middle frame, fanless enclosed design
- Passive heat dissipation, stable working in -10°C~50°C environment
- It supports a variety of installation methods such as wall mounting, DIN rail, desktop and so on
