Brief Introduction

1ED020I12-FT

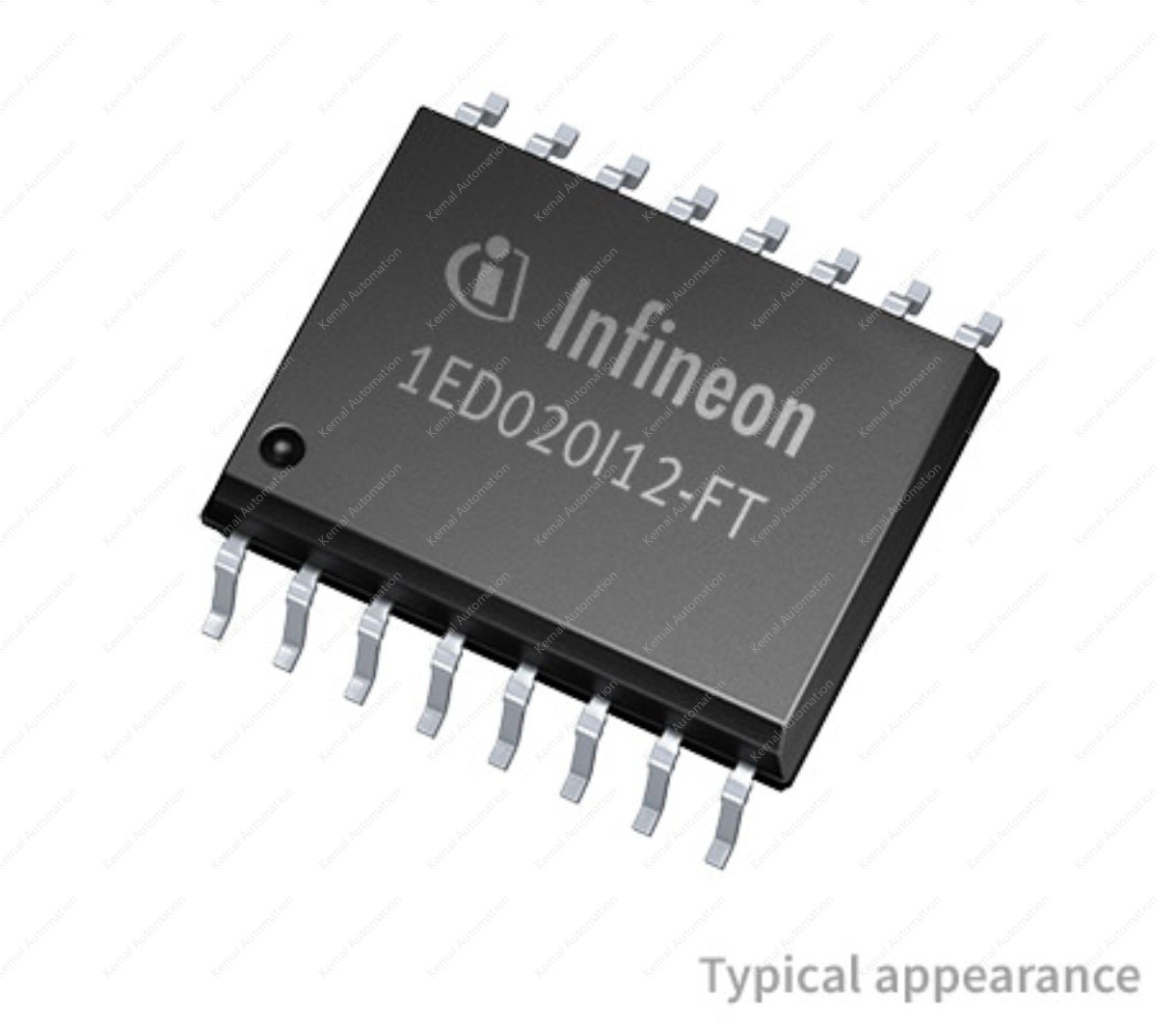

<p>1ED020I12-FT is a galvanic isolated single channel gate driver in DSO-16 wide body package that provides an output current capability of typically 2 A. All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED-FT provides several protection features like IGBT desaturation protection, active Miller clamping, active shut down and two level turn off.</p><p>Summary of Features:</p><p>Single channel isolated gate driver IC (1ED-FT)</p><p>For 600 V/1200 V IGBTs, MOSFETs, SiC MOSFETs, discrete and modules</p><p>2 A rail-to-rail typical output current</p><p>Precise DESAT protection, VCEsat detection</p><p>Active Miller Clamp, two level turn off (TLTOff)</p><p>Active shutdown and Short circuit clamping</p><p>28 V absolute Max. output supply voltage</p><p>200/230 ns Max. propagation delay</p><p>12/11 V output UVLO</p><p>≥ 50 kV/µs CMTI</p>
