Drive mode: NPN/PNP compatible
Rated voltage: 5VDC, 12VDC, 24VDC, 36VDC
Single channel rated power consumption: DC:0.53W AC:1.0VA
Operating voltage: rated voltage x 70%
Release voltage: rated voltage x 10%
Action time: ≤ 15ms
Release time: ≤ 10ms
Contact type: 1Z NO: 16A 250VAC/30VDC;
2Z:10A 250VAC/30VDC
Electrical lifespan: 1 × 10 5
Mechanical lifespan: 1 × 10 7
Contact material: Silver alloy
Contact resistance: ≤ 100mΩ（6VDC 1A）
Protection circuit: RC, Varistor, optional for melting
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

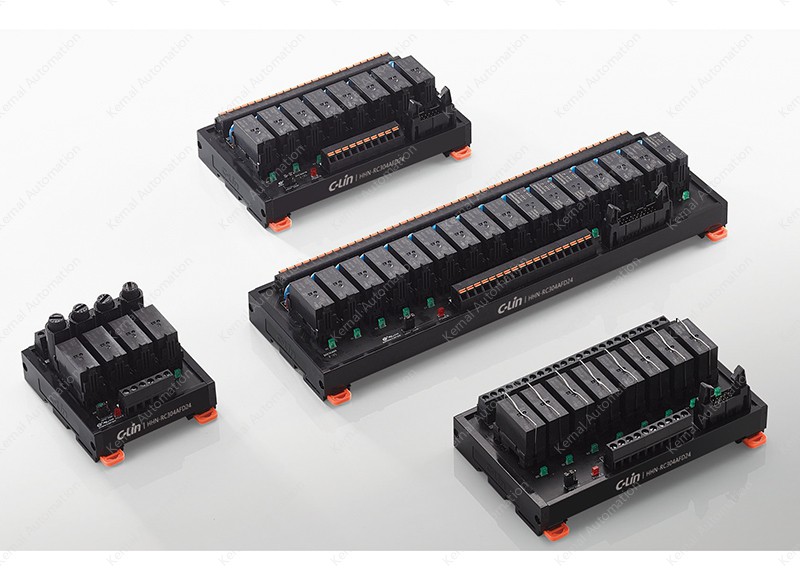

Relay
HHN-RC8
HHN-RC8
Subscribe to get pricesModel: HHN-RC8
Order No: HHN-RC8
SKU: 1736126735548241247
Condition: New Sealed Under Guarantee
Size: 17.00 mm，6.00 mm，5.00 mm
Weight: 10.00g
Product Selection Engineer：LiaoJF
In Stock
Brief Introduction
HHN-RC8
Drive mode: NPN/PNP compatibleRated voltage: 5VDC, 12VDC, 24VDC, 36VDCSingle channel rated power consumption: DC:0.53W AC:1.0VAOperating voltage: rated voltage x 70%Release voltage: rated voltage x 10%Action time: ≤ 15msRelease time: ≤ 10msContact type: 1Z NO: 16A 250VAC/30VDC;2Z:10A 250VAC/30VDCElectrical lifespan: 1 × 10 5Mechanical lifespan: 1 × 10 7Contact material: Silver alloyContact resistance: ≤ 100mΩ（6VDC 1A）Protection circuit: RC, Varistor, optional for melting
Description
