Drive mode: NPN/PNP compatible
Rated voltage: DC12V； DC18V； DC21V； DC24V； DC48V； DC100V
4-pole rated current (mA): 30; 20；17.1； 15；7.5； three point eight
4-pole power consumption (mW): approximately 360; About 420
6-pole rated current (mA): 41.7; 27.8； 23.8； 20.8； 10.4； five point three
6-pole power consumption (mW): approximately 500; five hundred and eighty
Operating voltage: around 75% relative to the rated voltage
Release voltage: around 10% relative to the rated voltage
Action time: ≤ 20ms
Release time: ≤ 10ms
Resistive load: AC250V 6A ； DC30V 6A
Performance of inductive load switch: AC15V AC240V 2A； DC13V DC24V 1A； DC48V 0.5A； DC110V 0.2A
Electrical lifespan: Over 100000 cycles (rated load)
Mechanical lifespan: over 10 million cycles
Maximum switching frequency: mechanical 36000 times/h rated load 1800 times/h
Contact material: Silver alloy
Contact resistance: ≤ 100mΩ
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

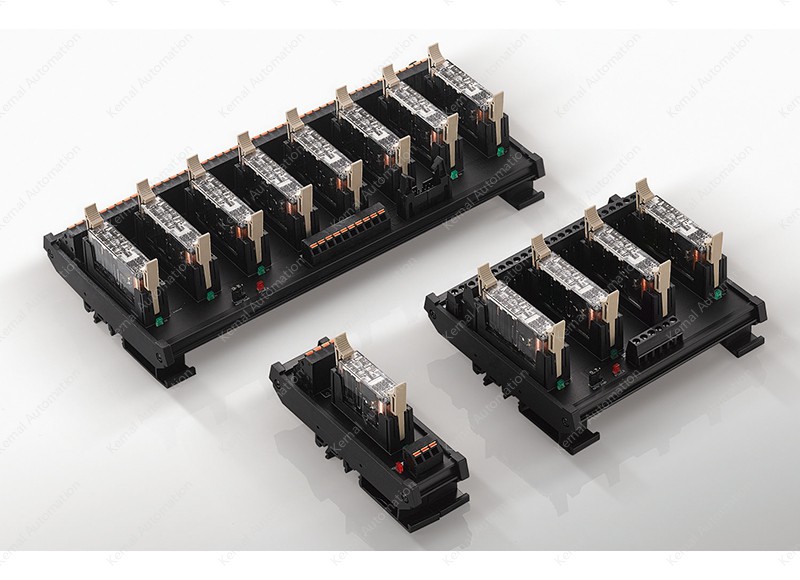

Relay
HHN-RQ
HHN-RQ
Subscribe to get pricesModel: HHN-RQ
Order No: HHN-RQ
SKU: 1736126735551258724
Condition: New Sealed Under Guarantee
Size: 20.00 mm，10.00 mm，5.00 mm
Weight: 10.00g
Product Selection Engineer：LiaoJF
In Stock
Brief Introduction
HHN-RQ
Drive mode: NPN/PNP compatibleRated voltage: DC12V； DC18V； DC21V； DC24V； DC48V； DC100V4-pole rated current (mA): 30; 20；17.1； 15；7.5； three point eight4-pole power consumption (mW): approximately 360; About 4206-pole rated current (mA): 41.7; 27.8； 23.8； 20.8； 10.4； five point three6-pole power consumption (mW): approximately 500; five hundred and eightyOperating voltage: around 75% relative to the rated voltageRelease voltage: around 10% relative to the rated voltageAction time: ≤ 20msRelease time: ≤ 10msResistive load: AC250V 6A ； DC30V 6APerformance of inductive load switch: AC15V AC240V 2A； DC13V DC24V 1A； DC48V 0.5A； DC110V 0.2AElectrical lifespan: Over 100000 cycles (rated load)Mechanical lifespan: over 10 million cyclesMaximum switching frequency: mechanical 36000 times/h rated load 1800 times/hContact material: Silver alloyContact resistance: ≤ 100mΩ
