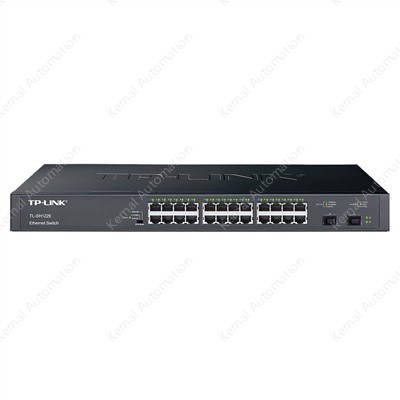

TL-SH1226 is a 10 Gigabit uplink unmanaged Ethernet switch product independently developed by TP-LINK, providing 24 x 10/100/1000M RJ45 ports and 2 x 10 Gigabit SFP+ fiber module expansion slots, with wire-speed forwarding capability per port. This series of switches provides different working modes for applications such as visual security, diskless boot and wireless networking, and has good network adaptability.
- 24 x 10/100/1000M adaptive RJ45 ports, 2 x 10 Gigabit SFP+ fiber module expansion slots
- All ports are capable of wire-speed forwarding
- Auto MDI/MDIX is supported
- The switch can be switched by flipping the switch
- Plug and play, rack-mountable
Port performance
It provides 24 x 10/100/1000M adaptive RJ45 ports and 2 x 10 Gigabit uplink SFP+ fiber module expansion slots, all ports can achieve wire-speed forwarding.
Each port supports MDI/MDIX auto-rollover and duplex/rate auto-negotiation;
Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.
Three modes of operation
It provides a mode switching switch, which supports three working modes: "standard switching", "VLAN isolation" and "network cloning", which can optimize and support various application scenarios such as visual security, diskless boot and wireless networking.
Simple to use
The 19-inch standard rack-mount is plug-and-play and requires no management, and dynamic LED indicators provide simple working status prompts and troubleshooting.
