MELSECNET (II) local station, SI optical cable, dual loop

MELSECNET (II) local station, ;3C-2V/5C-2V coaxial cable, duplex loop

MELSECNET/B local station, shielded twisted pair cable, single bus

1 channel, input: load cell output 0.0...3.3 mV/V, 18-point terminal block

2 channels, input: 4...20 mA DC, output (resolution): 0...32000, 0...64000, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated, power supply to 2-wire transmitter

2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

2 channels, input (resolution): 0...12000, -12000...12000, -16000...16000: output, -10...10 V DC, 0...20 mA DC, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated

2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

2 channels, input: thermocouple/micro voltage/voltage/current, output: 4...20 mA, 18-point terminal block, channel isolated, 5 PID control modes

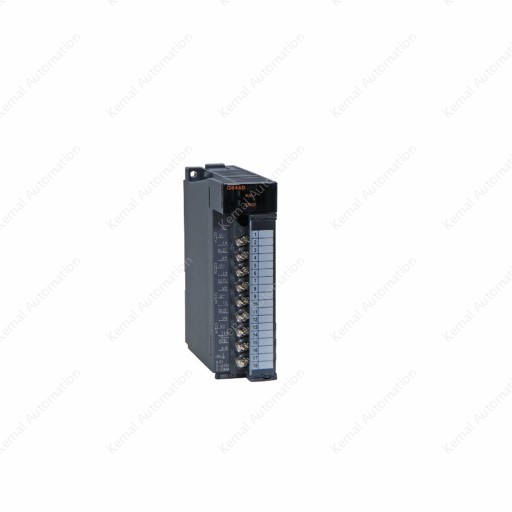

4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, 0...16000, -16000...16000, conversion speed: 80 μs/channel, 18-point terminal block

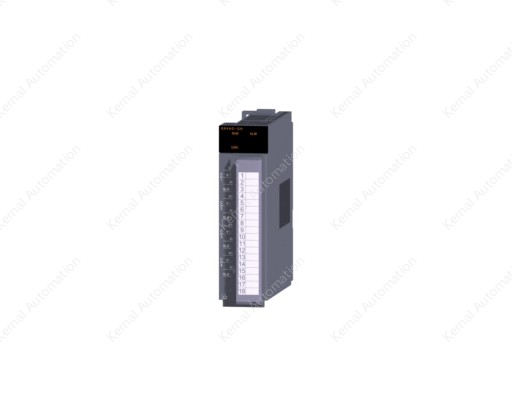

4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -32000...32000, 0...64000, -64000...64000, conversion speed: 10 ms/4 channels, 18-point terminal block, channel isolated

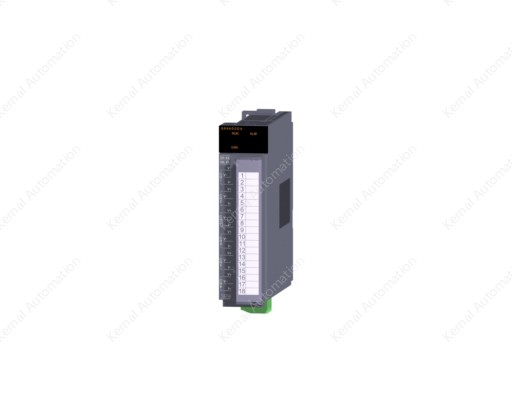

Analog input: 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, 0...16000, -16000...16000, conversion speed: 500 μs/channel, ;analog output: 2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -16000...16000, output: -10...10 V...

4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...20000, -20000...20000, -5000...22500, conversion speed: 20 μs/channel, 18-point terminal block

4 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

4 channels, input (resolution): 0...2000, -2000...20000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 20 μs/channel, 18-point terminal block

4 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

4 channels, platinum resistance thermometer (Pt100, JPt100), conversion speed: 40 ms/channel, 18-point terminal block

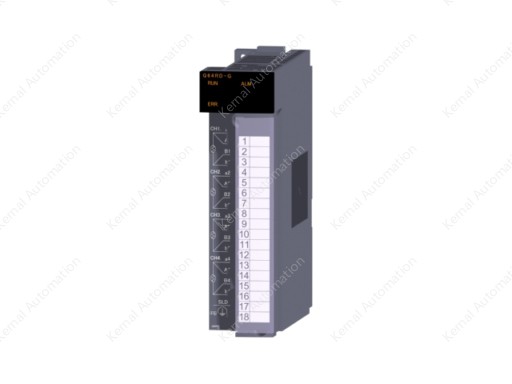

4 channels, RTD (Pt100, JPt100, Ni100), conversion speed, 40 ms/channel, 18-point terminal block, channel isolated

4 channels, platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 0.5 s/4 channels, 18-point terminal block, channel isolated

4 channels, platinum RTD (Pt100, JPt100), heater disconnection detection, sampling cycle: 0.5 s/4 channels, 18-point terminal block x 2, channel isolated

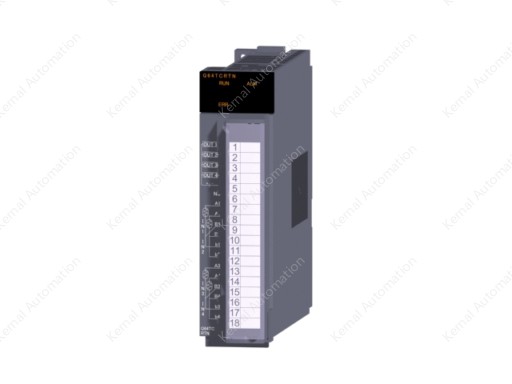

4 channels, platinum RTD (Pt100, JPt100), heater disconnection detection, sampling cycle: 500 ms/4 channels, 18-point terminal block x 2, channel isolated, heating-cooling control

4 channels, platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 500 ms/4 channels, 18-point terminal block, channel isolated, heating-cooling control

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), no heater disconnection detection, sampling cycle: 0.5 s/4 channels, 18-point terminal block, channel isolated

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), heater disconnection detection, sampling cycle: 0.5 s/4 channels, 18-point terminal block x 2, channel isolated

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), heater disconnection detection, sampling cycle: 500 ms/4 channels, 18-point terminal block x 2, channel isolated, heating-cooling control

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), no heater disconnection detection, sampling cycle: 500 ms/4 channels, 18-point terminal block, channel isolated, heating-cooling control

4 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 40 ms/channel, 18-point terminal block, channel isolated

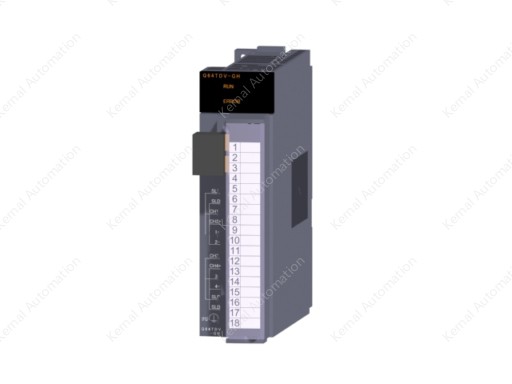

4 channels, thermocouple (B, R, S, K, E, J, T, N), micro voltage (-100...100 mV), conversion speed: (sampling cycle x 3)/channel, 18-point terminal block, channel isolated

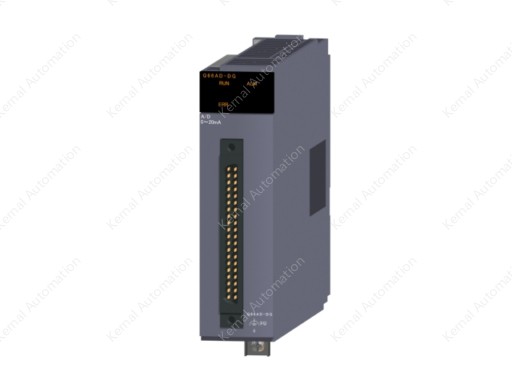

6 channels, input: 0...20 mA, 4...20 mA, output (resolution): 0...4000, 0...12000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated, power supply to 2-wire transmitter

6 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: 0...5 V DC, -10...10 V DC, 0...20 mA DC, 4...20 mA DC, conversion speed: 6 ms/channel, 40-pin connector, channel isolated
