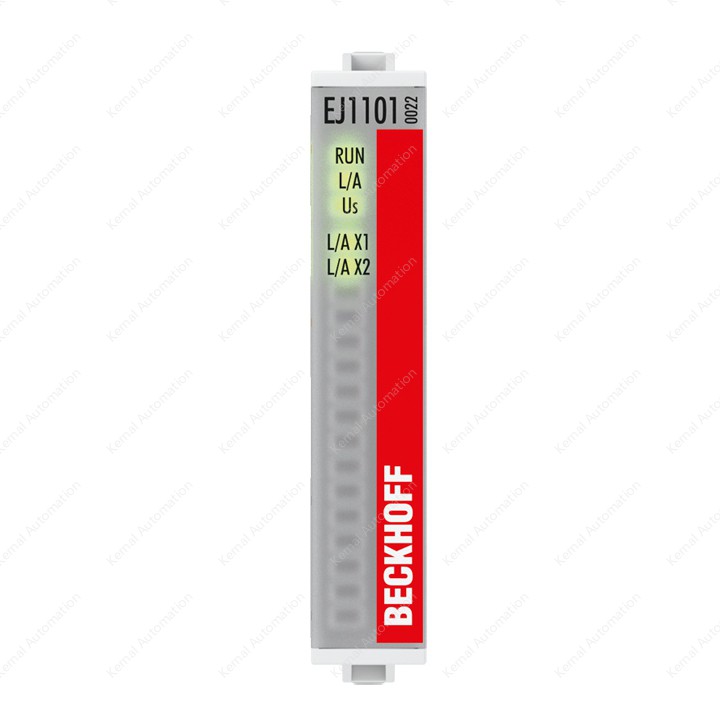

Task within EtherCAT systemcoupling of EtherCAT plug-in modules (EJxxxx) to 100BASE-TX EtherCAT networksDistance between stationsmax. 100 m (100BASE-TX)Data transfer mediumIndustrial Ethernet/EtherCAT cable (min. Cat.5), shieldedID switchexternal (optional, not included)Diagnosticsover-/undervoltage via EtherCAT CoEProtocolEtherCATDelaytyp. 1 µsData transfer rates100 Mbit/sBus interfaceplug connector on the signal distribution board, e.g. 2 x RJ45Power supply24 V DC (-15%/+20%)Current consumption E-bustyp. 310 mACurrent supply E-busexternal via EJ94xxElectrical isolation500 V (power contact/supply voltage/Ethernet)Weightapprox. 30 gOperating/storage temperature-25…+60°C/-40…+85°CRelative humidity95%, no condensationEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/see documentationApprovals/markingsCE, UL
