| Product type designation |
CP 1604 |
|

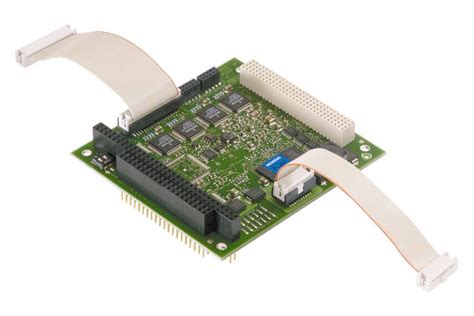

COMMUNICATION PROCESSOR CP 1604 PC/104 PLUS CARD (32 BIT; 33/66MHZ; 3.3/5V) WITH ASIC ERTEC 400 FOR PROFINET IO CONNECTION WITH 4-PORT-REAL-TIME-SWITCH VIA DEVELOPMENT KIT DK-16XX PN IO; NCM PC |
| Transmission rate |
| Transfer rate |
|
| ● at the 1st interface |
10 ... 100 Mbit/s |
| Interfaces |
| Number of electrical connections |
|
| ● at the 1st interface / acc. to Industrial Ethernet |
4 |
| ● for power supply |
1 |
| Design of the electrical connection |
|
| ● at the 1st interface / acc. to Industrial Ethernet |
RJ45 port via connection board |
| Supply voltage, current consumption, power loss |
| Type of voltage / of the supply voltage |
DC |
| Type of voltage supply / optional external supply |
Yes |
| Supply voltage |
|
| ● 1 / from backplane bus |
5 V |
| ● external |
24 V |
| ● Note |
optional external power supply and external supply voltage alternatively via power supply board (optional accessory) |
| Relative symmetrical tolerance / for DC |
|
| ● at 5 V |
5 % |
| ● at 24 V |
20 % |
| Consumed current |
|
| ● 1 / from backplane bus / for DC / maximum |
0.8 A |
| ● from external supply voltage / for DC / at 24 V / maximum |
0.3 A |
| Active power loss |
4 W |
| Active power loss / in switch mode / maximum |
4.1 W |
| Permitted ambient conditions |
| Ambient temperature |
|
| ● during operation |
5 ... 60 °C |
| ● during storage |
-20 ... +60 °C |
| ● during transport |
-20 ... +60 °C |
| Relative humidity / at 25 °C / without condensation / during operation / maximum |
95 % |
| Protection class IP |
IP00 |
| Design, dimensions and weight |
| Module format |
PC/104-Plus |
| Width |
90 mm |
| Height |
24 mm |
| Depth |
95 mm |
| Net weight |
110 g |
| Mounting type |
Screw mounting |
| Number of plug-in cards of same design / plug-in / per PC station |
1 |
| Number of units / Note |
- |
| Performance data |
| Performance data / PROFINET communication / as PN IO-Controller |
| Software / for PROFINET IO communication / required |
No |
| Number of PN IO devices / on PROFINET IO controller / usable / total |
128 |
| Number of PN IO IRT devices / on PROFINET IO controller / usable |
64 |
| Amount of data |
|
| ● as user data for input variables / as PROFINET IO controller / maximum |
8192 byte |
| ● as user data for input variables / as PROFINET IO controller / maximum |
8192 byte |
| ● as user data for input variables per PN IO device / as PROFINET IO controller / maximum |
1433 byte |
| ● as user data for output variables per PN IO device / as PROFINET IO controller / maximum |
1433 byte |
| Performance data / PROFINET communication / as PN IO-Device |
| Amount of data |
|
| ● as user data for input variables / as PROFINET IO device / maximum |
1433 byte |
| ● as user data for input variables / as PROFINET IO device / maximum |
1433 byte |
| ● as user data for input variables / for each sub-module as PROFINET IO device |
254 byte |
| ● as user data for input variables / for each sub-module as PROFINET IO device |
254 byte |
| ● as user data for the consistency area for each sub-module |
254 byte |
| Number of submodules / per PROFINET IO-Device |
64 |
| Product functions / management, configuration |
| Product function / MIB support |
Yes |
| Protocol / is supported |
|
| ● SNMP v1 |
Yes |
| ● DCP |
Yes |
| ● LLDP |
Yes |
| Identification & maintenance function |
|
| ● I&M0 - device-specific information |
Yes |
| ● I&M1 – higher-level designation/location designation |
Yes |
| ● I&M2 - installation date |
Yes |
| ● I&M3 - comment |
Yes |
| ● I&M4 - signature |
Yes |
| Product functions / Diagnosis |
| Product function |
|
| ● Web-based diagnostics |
Yes |
| ● Port diagnostics |
Yes |
| Product functions / switch |
| Product feature / Switch |
Yes |
| Product function / switch-managed |
No |
| Product function / with IRT / PROFINET IO switch |
Yes |
| Product functions / Redundancy |
| Software / for redundancy function / required |
No |
| Product function |
|
| ● Ring redundancy |
Yes |
| ● Redundancy manager |
Yes |
| ● Media Redundancy Protocol (MRP) |
Yes |
| Standards, specifications, approvals |
| Standard |
|
| ● for EMC |
2004/108/EC |
| ● for safety / from CSA and UL |
CAN/CSA C22.2 & UL 60950-1 |
| ● for emitted interference |
EN 61000-6-3, EN 61000-6-4 |
| ● for interference immunity |
EN 61000-6-1, EN 61000-6-2 |
| Certificate of suitability |
|
| ● CE marking |
Yes |
| ● C-Tick |
Yes |
| Accessories |
| accessories |
optional: Connection board for CP 1604, power supply board for CP 1604, HARDNET-IE DK (development kit) |
| last modified: |
23.10.2014 |
